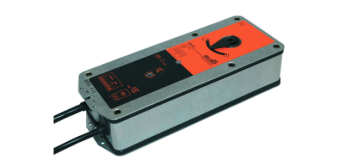

Привод BELIMO BR230
- Описание
- Характеристики
- Отзывы
- Задать вопрос
-
Описание
Mode of operation
2-wire open-close control. The actuator is overload-proof and can thus remain energised even at the end stops.
Signalling
Two microswitches with fixed settings are installed in the actuator for indicating the damper end positions. The position of the damper blade can be read off on a mechanical position indicator.
Manual operation
The hand crank supplied with the actuator can be used for manual operation.The damper function can thus be tested easily.
Standards / regulations
• Draft DIN 18232, Part 6, September 1992
– Fire protection in industrial buildings
– Smoke and heat extraction systems
• Preliminary standard ONORM H 6029, May 1997
Ventilation systems
– Fire smoke extraction systems
Excerpts from:
– CEN/TC191, 1996
– NA BAU, 1997Документы
alu5iaq0gctolfprwuiidchw8nycrx40 Размер: 536,6 кб -
Характеристики
Технические характеристики Electrical data Nominal voltage AC 230 V, 50/60 Hz Power supply range AC 198 ... 264 V Switching thresholds
Min. ON voltage
Max. OFF voltage
AC 198 V
AC 100 VPower consumption
Operation
End position
Rating
7 W @ nominal torque
0.5 W
14 VA / lmax. 8.2 A at 5 msAuxiliary switch
Contact rating (silver contact)
(gold-plated silver contact)
Switching points
Tolerance
2 x 1 PDT
6 (3) A, AC 250 V
1 mA ... 6 A, DC 5 V ... AC 250 V
3° / 87° (referring to 0 ... 90°)
±2°Connection
Motor
Auxiliary switchCable 1 m, 3 x 2 mm2 (halogen-free)
Cable 1 m, 6 x 2 mm2 (halogen-free)°Functional data Torque (nominal torque) Min. 15 Nm at nominal voltage Inhibiting torque
Dynamic
Static
15 Nm
18 NmDirection of rotation Can be selected by mounting L / R Angle of rotation Max. 95° (incl. 5° mechanical overrun) Running time ‹30 s for 90° Sound power level Max. 60 dB (A) Damper rotation 12 mm form-fit Position indication Mechanical with pointer Service life Min. 10 000 cycles Safety Protection class II totally insulated Degree of protection IP54 in all mounting positions EMC CE acc. to 2004/108/EC low-voltage directive CE according to 2006/95/EC Mode of operation Type 1.C (EN 60730-1) Rated impulse voltage 4 kV Control pollution degree 3 Ambient temp. range
Standard operation
> Safety function
-30 ... +50°C
See «Safety function»Non-operating temperature range -40 ... +80°C Ambient humidity range According to EN 60730-1 Maintenance Maintenance-free Dimensions / weigh Dimensions See «Dimensions» on page 3 Weight Approx. 2 700 g - Отзывы
-
